Angle of Engagement (AOE)

Post by IsparkTheLa » Tue Nov 30, 2010 2:35 pm

I have not seen much information on this forum regarding Angle of Engagement and I just wanted to share a method that I have been using and have had good luck with.

What is Angle of Engagement?
Angle of Engagement (AOE) is the angle at which the first tooth on the sector gear engages the catch tooth on the piston. Properly adjusted AOE will help ensure the correct meshing between teeth on the sector gear & piston. Angle of Engagement is an important factor in every AEG and even more crucial in high rate of fire guns. It will help prolong the life of your piston.

Uncorrected AOE looks like the following. Tooth faces are not parallel and when this happens, the error is translated to the remaining teeth. In other words, if the first teeth do not mesh properly, it can cause problems with the rest.

Correct AOE should look similar to the following. Notice how the tooth face on the sector gear (Red line) is parallel to the face of the catch tooth on the piston (yellow Line).

When covering AOE, it is also important to address Premature Engagement. This occurs when the first tooth on the sector gear engages the 1st, 2nd, or even the 3rd tooth on the piston BEFORE it engages the catch tooth. In the picture below, I have already removed the first piston tooth to help eliminate Premature Engagement, but for the purpose of this explanation, you can see where the 2nd piston tooth engages the sector gear before the catch tooth. To fix Premature Engagement, simply remove any piston teeth that interfere with engagement of the catch tooth.

Pictured below is an example of a damaged piston that was most likely caused by poor AOE, Premature Engagement, or a combination of both.

How to correct Angle of Engagement:

Installing Sorbo to Correct AOE:
What is sorbo? Sorbothane rubber is basically a cushion that is applied to your cylinder head. It has greater absorption properties in terms of shock transfer then the stock damper pads already installed. It helps cushion the impact and reduce shock from the piston slamming into the cylinder head. In my opinion, it significantly increases the life of your gearbox. Sorbothane comes in a variety thicknesses as well as hardness. If you have the ability to cut it on your own, it’s rather inexpensive to buy sheets of sorbothane in bulk from McMaster Carr. If you only need a few pads and don’t want to mess around with cutting it, you can purchase precut sorbo pads for just about every gearbox from sorbopads.com

Installing a sorbo pad is my preferred method for correcting AOE. Here is the installation process I use.

Pictured is a cylinder head with a stock damper pad. In the next step, we will be removing this pad in preparation for installing the new sorbo pad. I have had people tell me there is no point to remove the stock pad only to replace it with it with a similar looking sorbo pad. As with my other guides and contributions to this forum, I am simply sharing ideas which have given me success. I have cracked gearboxes in the past and since incorporating sorbo, knock on wood; I have yet to break a gearbox. I am not saying your gearbox won’t break, but in theory, it should greatly reduce the chances of it failing. If you do not feel this to be necessary, don’t do it.

Now remove the existing damper and scrape away old glue and debris.

Your sorbo pad must be able to withstand numerous impacts from the piston. Often if you are using a ported piston head, the ports within the head can shred the sorbothane and cause it to crumble. It’s highly recommended to glue a neoprene washer to the face of your sorbo pad to help maintain it’s integrity. I buy 1/16” neoprene washers from Ace Hardware or you can also find them on sorbopads.com

I can be a little OCD at times and even though you will never see it, I use a ¾” leather punch to neatly cut the neoprene washer to match the diameter of the sorbo. Like I said, this is personal preference for visual appearance….the neoprene can easily be cut with a pair of scissors.
Next we will glue the neoprene washer to the sorbo pad. It’s also recommened to use a high quality Cyanoacrylate (aka super glue) for bonding these surfaces. Hobby stores have a good selection of high strength adhesives that work very well. Apply a thin layer of glue to each surface and press them together. Pay attention to any access glue, and try to avoid getting any on your fingers….it’s some strong shi*!

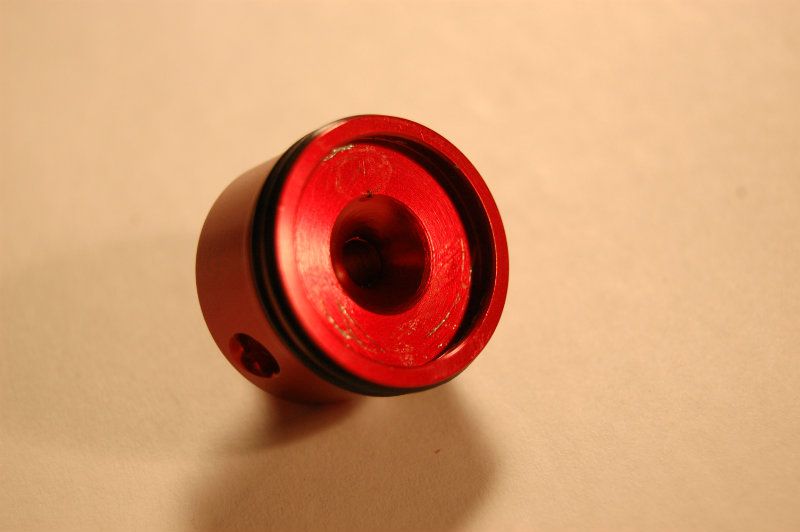

Now it’s time to prep the surface of the cylinder head. Once all of the old glue is removed, I like to use a utility knife and gently scratch the surface of the CH followed by a light sanding to remove any metal shavings (if you are using an aluminum CH). Then use a degreaser such as Simple Green to clean away all grease and oil from the cylinder head. Thoroughly rinse with water and dry. As before, apply a thin layer of glue to both the cylinder head and sorbo pad. I also like to let the glue cure overnight before installing the components into my gun.

*DISCLAIMER* The only issues I have ever had with the glue bonding to the cylinder head was when I tried gluing it to a non painted stainless steel Modify cylinder head. For some reason it would not stick…the bond would break and the sorbo would fall off within 5 trigger pulls. I use the cylinder head that is pictured in this guide in my personal 50+ rps DSG and after 15,000 rounds there have been zero issues. I don’t know if the paint has a positive effect or if it was something else….but it would not stick to bare stainless steel. I have never had a problem gluing to a plastic cylinder head either.
I always buy the 3/16” 70 duro (duro being it’s hardness) sorbothane. Once the neoprene washer is applied to the sorbo, it totals ¼” in thickness. There are really only two options when it comes to hardness of the sorbo pad….70 & 40. The softer being 40 is said to be used on guns shooting below 400 FPS and 70 duro is for guns above 400. I have always used the 70 duro no matter what the output is. For me, installing sorbo has corrected my AOE 95% of the time .



Another option for correcting AOE is done by using fiber washers to shim the piston head. Fiber washers look like this and can be found at any hardware store. They are lightweight and rather durable.

All you do is place the fiber washer(s) between the piston head and piston. This pushes the piston further back and should be done until the gear faces are parallel to each other, like pictured above. Here is a picture of what the fiber washer looks like when installed in the piston assembly.

And that is about it. I am sure my writing was confusing, but I hope the pictures helped eliminate some of the confusion. I hope that helps!
Last edited by IsparkTheLa on Wed Jan 30, 2013 2:28 pm, edited 1 time in total.
Today's problems cannot be solved if we still think the way we thought when we created them.

User avatar
Gill
MAA Member
Posts: 198
Joined: Thu Apr 23, 2009 4:21 pm
Location: Mankato MN
Contact:

Re: Angle of Engagement (AOE)

Post by Gill » Wed Dec 01, 2010 2:08 am

Wow, great guide man. I've never really thought about this before, I just sort of thought that it didn't really matter, but now I see that if it's off just a little bit, things can and will fail. Thanks for the heads up!
BATC Grad 10-11.
MAA Member #97
BANGARANG.

User avatar
N0va
A Regular
Posts: 140
Joined: Wed Nov 10, 2010 7:43 pm

Re: Angle of Engagement (AOE)

Post by N0va » Wed Dec 01, 2010 9:39 pm

I, as well, never thought of this either. I had some spare time to open up my gearbox and made sure it was correctly done. I will probably never know for sure whether or not I had a problem. Thanks for sharing this information.

gburger12296
Almost A Regular
Posts: 52
Joined: Sun May 16, 2010 7:51 am
Location: Rochester, MN

Re: Angle of Engagement (AOE)

Post by gburger12296 » Tue Dec 07, 2010 10:00 pm

I had a stock A&K weapon and this must have been the problem. After I opened up the gearbox, I realized the piston looked like this. This guide was great, and now I know what the problem was orignally thanks much!

User avatar
Stealth_Recon
MAA Member
Posts: 230
Joined: Sat Jan 23, 2010 10:48 pm
Location: Duluth, Minnesota

Re: Angle of Engagement (AOE)

Post by Stealth_Recon » Tue Dec 07, 2010 11:45 pm

This is a great guide. I wonder if the Mods would be willing to "sticky" this so it can be easily accessed later when needed?
MAA Member #99
BATC 10-11 Graduate
Aka = TAMARACK

G&G M4 (Combat Machine)
DBoy MK16 (SCAR-L)
JG MK5A4
JG SIG 552
DE M56A Tri-shot Shotgun
CA G36k

User avatar
Master TCAA
MAA Member
Posts: 639
Joined: Tue Oct 06, 2009 10:50 pm
Location: Otsego, MN

Re: Angle of Engagement (AOE)

Post by Master TCAA » Wed Dec 15, 2010 10:08 pm

Good job Matt. You always take nice pics too.
When the character of a man is not clear to you, look at his friends.
BATC grad 10-11
MAA Member #94
Team: Wolverines

User avatar
IsparkTheLa
MAA Member
Posts: 271
Joined: Tue Aug 04, 2009 10:43 am
Location: Maple Grove

Re: Angle of Engagement (AOE)

Post by IsparkTheLa » Wed Jan 30, 2013 2:29 pm

Updated with info on Sorbo.
Today's problems cannot be solved if we still think the way we thought when we created them.

User avatar
Rabid-Weasel
MAA Member
Posts: 1319
Joined: Mon Apr 14, 2008 2:23 pm
Location: Hugo, Mn

Re: Angle of Engagement (AOE)

Post by Rabid-Weasel » Wed Jan 30, 2013 6:59 pm

Very nice.
Jim
~BATC Grad 05-10
~MAA Member #91

Darkwing
Task Force Echelon
Posts: 34
Joined: Sat Mar 10, 2012 11:28 pm
Location: Inver Grove Heights, MN

Angle of Engagement (AOE)

Post by Darkwing » Wed Jan 30, 2013 8:55 pm

Thanks for the info. I just might have to do this now!
